CMS-0057-F Compliance Guide

A Vendor-Neutral CMS-0057-F Compliance Layer for Payer CAPS Platforms

Achieve CMS Interoperability and Prior Authorization compliance without replacing your core admin system. FHIR R4 APIs, Da Vinci IGs, and X12 EDI on a Kubernetes-native compliance layer.

FHIR R4 Da Vinci PAS Da Vinci PDex Automated Validation Security Scanning HIPAA USCDI v1/v2 Kubernetes
Contact Sales → Book a 30-min CMS-0057-F readiness review View Source on GitHub
API
FHIR Surface
Validation
Scan
Dependency
and Secret Checks
4 / 4
Required APIs
Implemented
<1hr
Local
Evaluation

What is Cloud Health Office?

Cloud Health Office is a modern payer administration and interoperability platform. It can operate alongside existing core administration systems such as QNXT, Facets, or HealthEdge, or progressively take over payer domains including eligibility, benefits, providers, prior authorization, claims, and accumulators.

For CMS-0057-F, a payer can start with an interoperability and readiness layer — FHIR R4 APIs, Da Vinci-aligned prior authorization, and terminology services deployed beside the core — and, over time, migrate individual domains onto Cloud Health Office as a payer core backend. It is not only a FHIR gateway or middleware shim: the same platform carries the adjudication, benefit, accumulator, and provider engines a payer core requires. See the platform overview and payer solutions for the full domain map.

What is CMS-0057-F?

The Advancing Interoperability and Improving Prior Authorization Processes final rule requires Medicare Advantage, Medicaid, CHIP, and QHP issuers to implement standardized FHIR R4 APIs — improving prior authorization, reducing provider burden, and enabling patient data access. Compliance deadline: January 1, 2027.

CMS-0057-F — Four Required FHIR R4 APIs ALL REQUIRED BY JANUARY 1, 2027 — CLOUD HEALTH OFFICE: IMPLEMENTED Patient Access API Claims & encounters data Clinical info via USCDI 1 business day of adjudication FHIR RESOURCES Patient Coverage Claim / EOB Encounter Implemented Provider Access API Authorized patient data Real-time / near-real-time NPI-based authorization FHIR RESOURCES ServiceRequest DocumentReference Claim / EOB Condition / Procedure Implemented Payer-to-Payer API Data exchange on enrollment 5-year historical data Bulk FHIR $export CAPABILITIES Bulk Data Export Enrollment Trigger Lifecycle Retention OAuth 2.0 Consent Implemented Prior Authorization API Real-time auth status 72hr urgent / 7-day standard Decision rationale required DA VINCI PAS ServiceRequest ClaimResponse DocumentReference X12 278 ↔ FHIR Implemented

CMS-0057-F Quick Answers

Concise, authoritative answers to the questions payer architects and technology leaders ask most about CMS-0057-F, FHIR APIs, prior authorization, and where Cloud Health Office fits. Each answer stands on its own and links deeper into the documentation.

What is CMS-0057-F?

CMS-0057-F is the CMS Advancing Interoperability and Improving Prior Authorization Processes final rule. It requires impacted payers — Medicare Advantage organizations, state Medicaid and CHIP programs, and Qualified Health Plan issuers on the federal Marketplaces — to expose standardized HL7 FHIR R4 APIs and to modernize prior authorization. The goals are patient and provider access to data, payer-to-payer data exchange, and faster, more transparent prior authorization decisions. Most API and prior authorization provisions carry a compliance date of January 1, 2027.

Which payers are affected by CMS-0057-F?

CMS-0057-F applies to Medicare Advantage organizations, state Medicaid fee-for-service programs and managed care plans, CHIP fee-for-service and managed care entities, and Qualified Health Plan issuers on the federally-facilitated Marketplaces. These impacted payers must implement the required FHIR APIs and prior authorization changes. Commercial and employer-sponsored plans are outside the federal rule's direct scope, though many adopt the same Da Vinci-aligned patterns. See who must comply for the detail by payer type.

What FHIR APIs does CMS-0057-F require?

CMS-0057-F requires four FHIR R4 APIs: a Patient Access API (claims, encounters, and clinical data via USCDI), a Provider Access API (member data to in-network providers), a Payer-to-Payer API (data exchange when members change plans), and a Prior Authorization API (status, decisions, and rationale). It also expands the existing Provider Directory API. Cloud Health Office implements all four as an implemented technical capability; each payer's data mapping is configured during onboarding. The compliance documentation maps each API to its FHIR resources.

What are CRD, DTR, and PAS?

CRD, DTR, and PAS are the three HL7 Da Vinci prior authorization Implementation Guides. Coverage Requirements Discovery (CRD) tells a provider, at the point of order, whether prior authorization is needed. Documentation Templates and Rules (DTR) gathers the required clinical documentation using FHIR Questionnaires. Prior Authorization Support (PAS) submits the request and returns the decision. PAS underpins the CMS-0057-F Prior Authorization API; CRD and DTR are Da Vinci-aligned capabilities CMS encourages rather than separately mandating in this final rule. The prior authorization guide walks the full flow.

Does CMS-0057-F require a payer to replace QNXT, Facets, or HealthEdge?

No. CMS-0057-F requires FHIR APIs and prior authorization changes; it does not require replacing your core administration system. Cloud Health Office is designed to deploy as an interoperability and readiness layer beside an existing QNXT, Facets, HealthEdge, or Amisys core, which remains the system of record. The core keeps adjudicating claims and holding member data while Cloud Health Office exposes the required FHIR surfaces and Da Vinci-aligned prior authorization. Integration to each specific core is configured during onboarding — see the QNXT / Facets / HealthEdge architecture article.

Can Cloud Health Office work alongside an existing payer core?

Yes. Running alongside an existing core is the default deployment. Cloud Health Office reads member, coverage, provider, and claims data from the core through a vendor-neutral adapter, typically in a read-only augment mode, and exposes CMS-0057-F FHIR APIs, terminology translation, and Da Vinci-aligned prior authorization on top. Your core administration system stays in place as the system of record. The specific adapter and data mappings for QNXT, Facets, HealthEdge, or a custom core are configured during onboarding. The architecture documentation details the adapter model.

Can Cloud Health Office become the payer core backend?

Yes, progressively. Beyond the interoperability layer, Cloud Health Office includes the engines a payer core requires — eligibility, benefits, provider data, prior authorization, claims adjudication, and accumulators. A payer can migrate one domain at a time onto Cloud Health Office rather than performing a single rip-and-replace, keeping the legacy core authoritative for the domains not yet moved. This progressive modernization path lets the same platform that delivered CMS-0057-F readiness grow into the payer core backend. The platform overview shows the domains available today.

What role does terminology play in FHIR prior authorization?

A large one. Da Vinci workflows exchange clinical concepts in SNOMED CT and LOINC, while payer coverage rules and claims adjudicate in CPT and ICD-10-CM. Without translation between these code systems, a prior authorization request cannot be reliably matched to benefit configuration. Cloud Health Office includes a FHIR terminology service that performs SNOMED CT to CPT/ICD-10-CM translation via ConceptMap/$translate, with context-aware disambiguation and plan-specific overrides configured per payer. See the terminology guide for the mapping model.

Does PAS replace X12 278?

Not entirely. CMS-0057-F adds a FHIR-based Prior Authorization API built on Da Vinci PAS, but the X12 278 transaction remains part of the ecosystem — clearinghouses and many trading partners still exchange 278. In practice PAS and X12 278 coexist, and a payer needs to translate between them. Cloud Health Office maps X12 278 to and from FHIR PAS resources so a single prior authorization can move across both worlds. The prior authorization guide covers the 278 ↔ FHIR mapping.

What does a payer still need to configure during implementation?

Cloud Health Office provides the implemented technical capability; a payer-specific implementation still requires configuration. During onboarding a payer maps its core data (members, coverage, claims, provider contracts) to FHIR resources, connects the core through the appropriate adapter, loads or reviews terminology and plan-specific coding overrides, sets prior authorization timelines and decision rationale, configures OAuth 2.0 and consent, and validates USCDI coverage. See the payer compliance checklist for the full list.

How Cloud Health Office Fits Your Stack

CHO deploys as a compliance layer alongside your existing core admin processing system. No replatforming. No rip-and-replace. Your CAPS stays in place — CHO handles FHIR, EDI, terminology translation, provider verification, and CMS compliance.

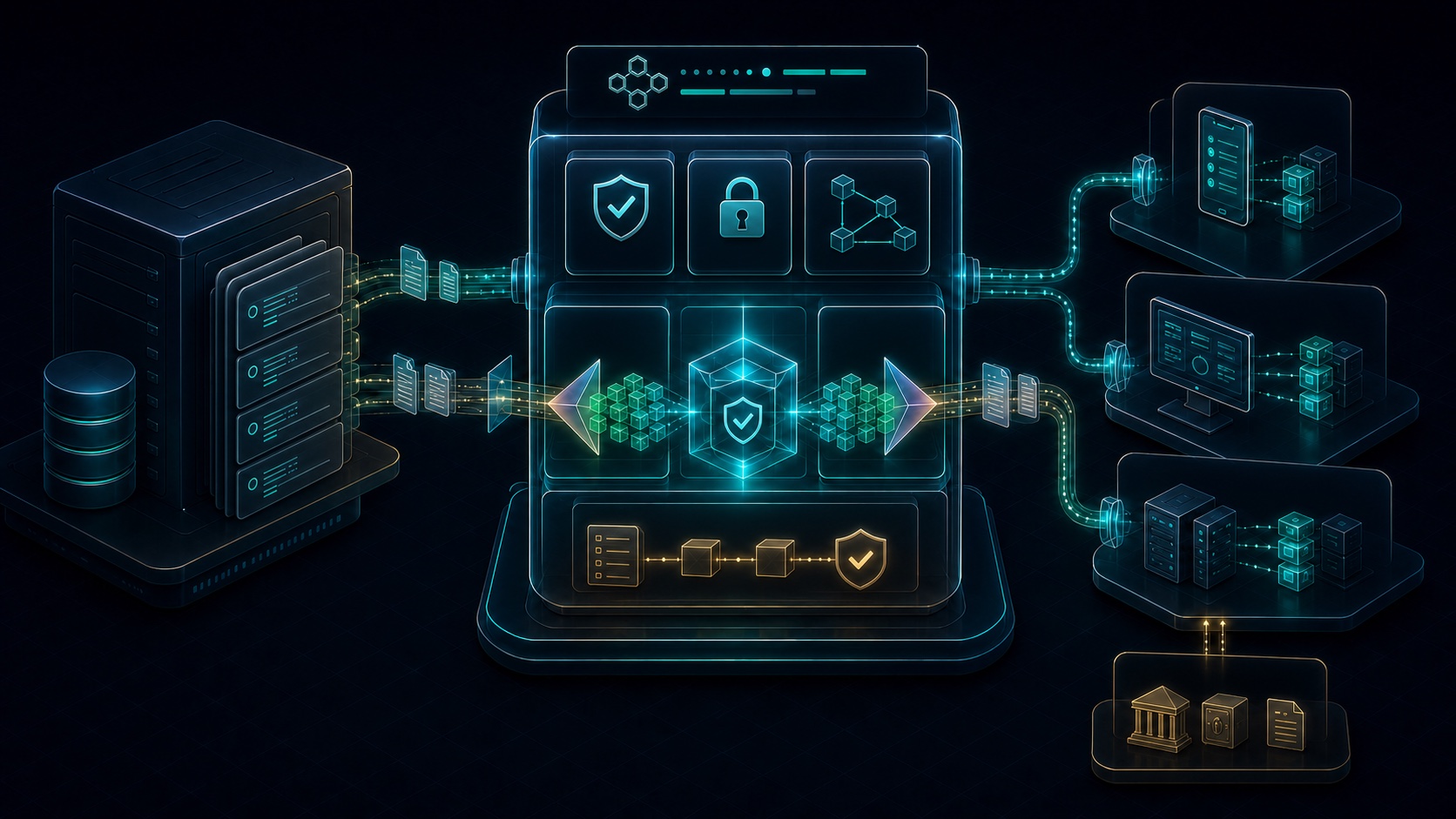

An existing payer core sends healthcare transactions through a modular compliance gateway with security, consent, routing, bidirectional data translation, and audit services, then out to member, provider, payer, and regulator-facing channels.
Existing coreThe payer’s current CAPS and source data remain systems of record.
CHO layerSecurity, consent, prior authorization, translation, and evidence sit beside the core.
Required accessFHIR-facing channels serve members, providers, and payer-to-payer exchange.
The illustration gives the architectural relationship; the implementation diagram below names the individual services and standards.
Provider EHRs Epic · Meditech · Cerner · SMART on FHIR apps Members / patients Third-party SMART on FHIR patient apps CDS Hooks FHIR R4 Cloud Health Office CMS-0057-F compliance layer — deploys alongside any core admin system CRD server Coverage Requirements Discovery order-select · order-sign · CDS Hooks DTR engine Documentation Templates & Rules FHIR Questionnaire · QuestionnaireResponse PAS server Prior Authorization Support Claim/$submit · 15-second SLA (validate per deployment) Terminology service SNOMED CT ↔ CPT / ICD-10-CM crosswalk ConceptMap/$translate · context disambiguation Provider verification NPPES · OIG/LEIE · PECOS · FSMB Composite integrity score (0–100) per NPI SMART auth service OAuth 2.0 · JWT · scope enforcement Patient consent · provider authorization FHIR R4 APIs Patient Access · Provider Access Payer-to-Payer · Provider Directory X12 EDI parsers 278 · 837 · 835 · 834 · 276/277 · encoder 6 parsers · zero dependencies · bidirectional Claims + benefit engine 10-step adjudication pipeline · sub-second target (validate per deployment) 9 engines · NCCI · COB · DRG · HDHP/HSA ICoreAdminAdapter Vendor-neutral CAPS integration · augment mode (read-only) or replace mode · QNXT · Facets · HealthEdge · Amisys Kubernetes (AKS / EKS / GKE) · Argo Workflows · MongoDB / Cosmos DB · Redis · Azure Key Vault · KEDA scale-to-zero Your core admin system QNXT · Facets · HealthEdge · Amisys · custom Members · coverage · claims · benefits · provider contracts Clearinghouse Stedi (outbound) · Availity and Change Healthcare (scaffolds) X12 278 prior auth · 837 claims · 835 remittance Members, coverage, claims, benefits READ ONLY EDI transactions + auth write-back automated tests 57% coverage 36 microservices 9 engines · 6 parsers 0 dependencies Zero third-party runtime <1 hour deploy Helm + interactive wizard Teal = Da Vinci workflow · Purple = compliance intelligence · Blue = platform · Amber = CAPS bridge · Gray = external systems © 2026 Aurelianware, Inc.

Compliance in Action

CMS-0057-F Isn't a Feature. It's How the Platform Works.

Every claim that enters Cloud Health Office is automatically routed through compliance-aware work queues. Prior authorization, COB coordination, provider contracting, and NCCI/MUE edits aren't bolt-on modules — they're native to the adjudication pipeline.

local-demo/operations/work-queues
Cloud Health Office Claims Work Queues showing compliance-driven queue routing
NCCI/MUE Edit Failures

Claims failing National Correct Coding Initiative or Medically Unlikely Edit rules are automatically flagged and routed for examiner review.

Missing Prior Authorization

CMS-0057-F requires prior auth decisioning with rationale. Claims requiring authorization that lack an auth on file are pended — not denied — per the PriorAuthDecisionEngine's configured pathways.

COB / Other Payer

Coordination of benefits claims with primary, secondary, or tertiary payer involvement. Birthday rule, gender rule, and Medicare secondary payer logic handled natively.

Provider Not Contracted

Claims from providers without active contracts are flagged via the ProviderVerificationService — checking NPPES, OIG/LEIE, SAM.gov, PECOS, and CMS Open Payments for a composite integrity score.

Medical Review

Claims exceeding charge thresholds, unusual procedure combinations, or requiring clinical documentation are routed for medical director review with full audit trail.

X12 EDI ↔ FHIR R4 — Bidirectional Implementation Evidence

X12 transactions from the core admin system can be transformed to FHIR R4 resources conforming to Da Vinci profiles through configurable, auditable mapping pipelines.

X12 EDI 270 Eligibility 837 Claims 278 Prior Auth 835 Remittance 275 Attachments CHO FHIR MAPPER mapX12270ToFhir mapX12837ToFhirClaim mapX12278ToFhirPriorAuth mapX12835ToFhirEOB ingest275Workflow FHIR R4 / DA VINCI Patient + Coverage Claim (PDex) ServiceRequest (PAS) ExplanationOfBenefit DocumentReference

SNOMED CT ↔ CPT/ICD — The Gap No One Else Solves

Da Vinci workflows (CRD, DTR, PAS) exchange clinical data in SNOMED CT. Your CAPS adjudicates in CPT and ICD-10-CM. Without built-in translation, prior auth requests cannot be matched to benefit configuration. Most implementations treat this as "customer responsibility." CHO solves it natively.

Implemented FHIR R4 ConceptMap

ConceptMap/$translate API

FHIR-native terminology translation with ~119,000 NLM/UMLS mappings, AMA CPT cross maps (BYOL), and tenant-scoped plan-specific overrides. Single-code and $batch-translate endpoints for real-time and bulk use.

Implemented Context-Aware

Disambiguation Engine

When SNOMED maps to multiple ICD-10-CM codes, the context rule engine uses patient age, gender, state, co-morbidities, and plan coding policy to select the best match — not just the first match.

Implemented CRD + PAS + DTR

Da Vinci Integration

The CRD server, PAS server, and DTR engine consume the crosswalk at runtime. SNOMED codes from EHRs are translated to payer code space for coverage rules, prior auth decisions, and questionnaire pre-population.

Implemented Multi-Tier Maps

Map Management

Auto-loading at startup, runtime upload via Admin API, SHA-256 version tracking, and full audit trail. Plan-specific overrides support Texas TMPPM, state Medicaid variations, and custom coding policy per tenant.

How Cloud Health Office implements the core capabilities

Each CMS-0057-F capability below follows the same structure — a quick answer, how it works, how Cloud Health Office implements it, and links to the implementation evidence. For the full narrative, read the architecture article.

Coverage Requirements Discovery (CRD)

Quick answer

CRD tells a provider, while they are placing an order, whether a service needs prior authorization and what documentation applies. It runs through CDS Hooks so the answer appears inside the provider's EHR workflow.

How it works

The EHR fires an order-select or order-sign CDS Hook to the payer's CRD service, which evaluates coverage rules for the ordered code and member coverage, then returns cards indicating authorization requirements and pointing to a DTR questionnaire when documentation is needed.

How Cloud Health Office implements it

Cloud Health Office evaluates coverage rules against the member's benefit configuration and the terminology service, so SNOMED-coded orders resolve to the payer's CPT/ICD code space before a rule fires. Coverage rules are payer-specific and configured during onboarding.

Documentation Templates and Rules (DTR)

Quick answer

DTR collects the clinical documentation a prior authorization needs using a FHIR Questionnaire, pre-populating answers from the patient record so the provider fills in as little as possible.

How it works

The payer publishes a FHIR Questionnaire with embedded CQL logic. A DTR app renders it, pulls known values from the EHR, and returns a QuestionnaireResponse that travels with the authorization request into PAS.

How Cloud Health Office implements it

Cloud Health Office produces and consumes FHIR Questionnaire and QuestionnaireResponse resources and carries the response through to the prior authorization submission. Questionnaire content is Da Vinci-aligned and tailored to each payer's policies during onboarding.

Prior Authorization Support (PAS)

Quick answer

PAS is the FHIR mechanism behind the CMS-0057-F Prior Authorization API. It submits the authorization request and returns the decision, status, and rationale to the provider.

How it works

A provider system sends a Claim/$submit bundle containing the ServiceRequest and supporting documentation. The payer responds with a ClaimResponse carrying the decision. Where trading partners still use EDI, the request is bridged to and from the X12 278 transaction.

How Cloud Health Office implements it

Cloud Health Office exposes a Da Vinci-aligned PAS endpoint and includes a 278→FHIR mapping prototype. Response timelines and decision rationale are set to each payer's policies during onboarding.

Terminology services

Quick answer

Terminology services translate between the SNOMED CT and LOINC codes used in clinical workflows and the CPT and ICD-10-CM codes used in payer coverage and claims, so prior authorization requests can be matched to benefit configuration.

How it works

A FHIR terminology server exposes ConceptMap/$translate. When one source code maps to several targets, a context engine uses member and policy attributes to choose the appropriate code rather than the first match.

How Cloud Health Office implements it

Cloud Health Office ships a terminology service with ConceptMap/$translate, context-aware disambiguation, and tenant-scoped plan-specific overrides. Source mappings and payer coding policy are loaded and reviewed during onboarding.

Progressive modernization

Quick answer

Progressive modernization lets a payer start with an interoperability layer for CMS-0057-F readiness and then migrate individual domains — eligibility, benefits, providers, prior authorization, claims, accumulators — onto Cloud Health Office over time, without a single rip-and-replace.

How it works

A vendor-neutral core adapter connects to the existing core, initially in read-only augment mode. Domains move onto Cloud Health Office one at a time; the legacy core stays authoritative for domains not yet migrated, so each step is reversible and independently validated.

How Cloud Health Office implements it

The same platform that delivers the FHIR readiness layer carries the adjudication, benefit, provider, and accumulator engines, so a payer can grow it into the payer core backend. The adapter and per-domain cutover are payer-specific and configured during onboarding.

Multi-Source Provider Verification

Provider Access API and Prior Authorization require verified, current provider records. CHO aggregates five federal and state data sources into a composite Provider Integrity Score (0–100) per NPI — blocking excluded providers automatically.

Implemented NPPES

NPI Registry Validation

NPI validity, practice address, taxonomy code, and enumeration status verified against the National Plan and Provider Enumeration System. Daily update cadence.

Implemented OIG / LEIE

Federal Exclusion Screening

Automatic screening against the OIG List of Excluded Individuals/Entities. Excluded providers are blocked from authorization and claims processing. Monthly sync.

Implemented PECOS + FSMB

Enrollment & Licensing

Medicare enrollment verification via PECOS and active medical license confirmation via FSMB state licensing data. Disciplinary actions and multi-state compact status tracked.

Implemented Integrity Score

Composite 0–100 Score

Weighted algorithm across all five sources produces a single integrity score per NPI. Configurable thresholds, automatic blocking, and audit-logged verification results for compliance documentation.

CMS-0057-F Coverage

Coverage for the required FHIR and prior authorization surfaces, validated through automated tests and implementation artifacts rather than brittle release-count claims.

Requirement Da Vinci Profile Tests Status
Patient Access APIPDex Patient / Coverage / Claim / EOB19Implemented surface / integration required
Patient and Coverage data is synthetic
Provider Access APIPDex + PAS ServiceRequest / DocumentRef8Implemented surface / integration required
Patient and Coverage data is synthetic
Payer-to-Payer APIBulk FHIR $export / Enrollment Trigger6Phase 2 required
Bulk $export is a scaffold; not yet producing data
Prior Authorization APIDa Vinci PAS 2.0.1+12Implemented surface / integration required
72-Hour Urgent ResponseCompliance Checker — automated trackingAuto✅ Automated
7-Day Standard ResponseCompliance Checker — automated trackingAuto✅ Automated
USCDI v1 / v2 CoverageUS Core 3.1.1+ data class mappingMapped✅ Complete
X12 270 → FHIRPatient + CoverageEligibilityRequest—Implemented
X12 837 → FHIRDa Vinci PDex Claim—Implemented
X12 278 → FHIRDa Vinci PAS ServiceRequest—Implemented
X12 835 → FHIRDa Vinci PDex EOB—Mapped
X12 275 → FHIRUS Core DocumentReference—Partial
OAuth 2.0 / SMART on FHIRAzure AD + SMART scopes—Implemented
HIPAA Security ControlsTLS 1.2+ / AES-256 / Key Vault / BAA—Validate per deployment
Terminology Translation (SNOMED ↔ CPT/ICD)FHIR R4 ConceptMap/$translate—Implemented
Provider Verification & DirectoryNPPES / OIG / PECOS / FSMB Integrity Score—Implemented

Proof: what is published, and what it covers

Two evidence systems back the CMS-0057-F surfaces described above, and they are published separately because they answer different questions. The CMS-0057-F implementation evidence is generated from an executable acceptance suite at a named source revision. Da Vinci interoperability evidence records real exchanges with an independently developed HL7 reference implementation. Neither is CMS certification, and neither is merged into the other. Start at the Evidence Hub, or go straight to the Payer-to-Payer implementation evidence, the CRD/DTR/PAS workflow evidence or the Provider Access security evidence.

The Million Claim Challenge

The Million Claim Challenge is not just a load test — it is an evidence system for claims correctness and platform behavior under volume. It exercises the same adjudication pipeline that backs the CMS-0057-F surfaces and captures run history, workflow checks, unsupported scenarios, mismatches, and payment delta, so benchmark claims can be inspected rather than merely reported. The point is verifiable behavior, not a throughput headline.

Read the benchmark write-up and inspect the evidence: Million Claim Challenge — Open Claims Adjudication Benchmark →. The run-level evidence surface is the Mass Adjudication console inside the portal, which exposes run history, claims/sec, latency, workflow checks, unsupported scenarios, mismatches, payment delta, and claim-level drilldown.

Scope & caveats: These are local Kubernetes measurements, not production-cloud capacity claims. Part 15 is the latest strict zero-platform-failure one-million-claim result, with 20,000/20,000 sampled payment checks exact within one cent. Part 16 reached 155.89 claims/sec through asynchronous Service Bus adjudication and all 1,000,000 claims eventually became terminal; 122 claims exceeded the validator's 180-second observation window, leaving 20 workflow checks and 18 payment comparisons unreconciled inside that run.

Implementation Timeline

The CMS deadline is January 2027. The practical path is to stand up the compliance surface first, validate integrations, then expand modernization scope deliberately.

July 2026 — You are here · ~6 months to deadline
Stand Up the Compliance Surface
Deploy CHO alongside your core admin system. Configure Azure AD OAuth 2.0, bring up the Patient Access, Provider Access, Payer-to-Payer, and Prior Authorization API surfaces, and validate them against the relevant Da Vinci profiles with the compliance checker.
Next — Integration & Platform Engagement
Integrate, Harden, and Operationalize
Integrate with existing auth/claims systems and clearinghouse partners. Deploy the operational workflows — RBAC, work queues, appeals, enrollment, benefit configuration, and auditability — then complete load testing, security review, and compliance audit documentation.
January 1, 2027 — CMS Deadline
CMS-0057-F Enforcement Begins
All impacted payers must be operational. Medicare Advantage, Medicaid managed care, CHIP, and QHP issuers on federal Marketplaces.

Da Vinci IG Conformance

Endpoints aligned to Da Vinci PDex, PAS, CRD, and DTR; formal server-side profile validation (Inferno) has not yet been run.

Implemented Da Vinci PDex 2.0+

Payer Data Exchange

Standardized FHIR profiles for payer-sourced data. US Core Patient v3.1.1+, PDex Claim, ExplanationOfBenefit, Coverage. Complete USCDI v1 & v2 data classes.

Implemented Da Vinci PAS 2.0.1+

Prior Authorization Support

ServiceRequest for authorization requests. ClaimResponse for decisions. DocumentReference for attachments. 72-hour urgent and 7-day standard timeline compliance.

Implemented Da Vinci CRD 2.0+

Coverage Requirements Discovery

Real-time coverage rules discovery. Documentation requirements identification during provider workflow. CDS Hooks integration pathway.

Implemented Da Vinci DTR 2.0+

Documentation Templates & Rules

FHIR Questionnaire and QuestionnaireResponse. Automated clinical documentation collection from payer rules. Reduced provider administrative burden.

Who Must Comply with CMS-0057-F?

If you're a regulated payer, you're in scope. Cloud Health Office serves every payer type impacted by the rule.

Medicare Advantage (MA)

All MA organizations must implement Patient Access, Provider Access, Prior Auth, and Payer-to-Payer APIs by January 1, 2027.

Medicaid Managed Care

Medicaid managed care plans and FFS programs require full FHIR R4 API implementation with USCDI data class coverage.

CHIP Programs

Both CHIP FFS and CHIP managed care entities are subject to all four API requirements with identical compliance deadlines.

QHP Issuers (Marketplace)

Qualified Health Plans on federal Marketplaces must implement all required APIs. State-based marketplace issuers should monitor state adoption.

Payer Compliance Checklist

A comprehensive readiness checklist for health plans implementing CMS-0057-F with Cloud Health Office.

Pre-Implementation

Identify applicable requirements by payer type (MA, Medicaid, CHIP, QHP)
Assess current systems for FHIR readiness and X12 integration
Allocate budget, personnel, and timeline
Select FHIR server (Azure Health Data Services recommended)
Establish Azure / cloud environment

Technical Deployment

Deploy Cloud Health Office via Helm or Azure Logic Apps
Configure OAuth 2.0 with Azure AD
Set up X12 integration with clearinghouse partners
Deploy FHIR endpoints for all four required APIs
Configure response timelines (72hr urgent, 7-day standard)
Enable compliance validation with compliance-checker

Data & Integration

Map data sources (claims, auth, clinical) to FHIR resources
Validate USCDI v1/v2 coverage
Populate 5-year historical data for payer-to-payer
Implement decision rationale for prior auth denials
Add clinical guidelines references

Security & Compliance

HIPAA compliance (PHI encryption, audit logging)
OAuth 2.0 security (patient consent, provider auth)
Penetration testing and security audit
Disaster recovery and backup strategies
Data retention policies (7-year minimum)

Testing & Validation

Unit testing for FHIR transformations
Integration testing end-to-end workflows
Load testing for deployment-specific scalability
Provider and patient UAT

Provider & Patient Enablement

Provider onboarding documentation
API docs (Swagger/OpenAPI)
Developer portal for third-party apps
CMS attestation and audit trail

PMPM Pricing

CMS-0057-F compliance is delivered through Platform Engagement — payer-scale relationships priced per member per month (PMPM) across three layers: Layer 1 — Compliance Accelerator, Layer 2 — Progressive Modernization, and Layer 3 — Full CAPS Platform. Pilot-scoped terms; early production deployment terms in each layer.

See full pricing across all four product lines →

Deploy in Under an Hour

Clone, build, validate, deploy. Use the source-available implementation to evaluate the CMS-0057-F compliance surface before a payer-specific rollout.

# Clone and build
$ git clone https://github.com/aurelianware/cloudhealthoffice.git
$ cd cloudhealthoffice && npm install && npm run build

# Run FHIR compliance tests
$ npm run test:fhir

# Deploy with interactive wizard
$ npm run generate -- interactive --output config.json --generate

# Validate CMS-0057-F compliance
$ node dist/src/fhir/examples.js

✓ FHIR endpoints validated for CMS-0057-F readiness.

Standards, Specifications, and Documentation

Everything you need to understand CMS-0057-F requirements and Cloud Health Office implementation.

CMS Regulations

CMS-0057-F Final Rule

Federal Register publication, CMS prior authorization overview, and the CMS interoperability roadmap for impacted payers.

HL7 FHIR

FHIR R4 + US Core

FHIR R4 v4.0.1 specification, US Core IG v3.1.1+, USCDI v2 data class definitions from ONC.

Da Vinci Project

Da Vinci Implementation Guides

PDex, PAS, CRD, DTR, and CDex implementation guides from the HL7 Da Vinci Project.

Cloud Health Office

CHO Documentation

The FHIR APIs for health plans reference, plus the Security Hardening, HIPAA Compliance Matrix, Deployment Guide, and Config-to-Workflow Generator docs.

From requirements to a modern payer backend

Go past the readiness checklist and into the architecture: how CRD, DTR, PAS, terminology, prior authorization, and payer-specific adapters actually connect to an existing core.

Implementation Pillar · CMS-0057-F Architecture

CMS-0057-F Implementation Architecture for Health Plans

The end-to-end reference architecture: how a health plan implements CMS-0057-F across FHIR APIs, prior authorization (CRD, DTR, PAS), terminology and reference data, identity and security, observability, and integration with existing core platforms like QNXT, Facets, and HealthEdge—or with Cloud Health Office as the core backend.

The deadline is January 2027.
The compliance path can start now.

Medicaid MCOs, Medicare Advantage, and commercial payers. Deployment in weeks, not months.

Need a read on where you actually stand first? A CMS-0057-F readiness and architecture assessment is a Professional Services engagement, and it does not require licensing or deploying Cloud Health Office.
